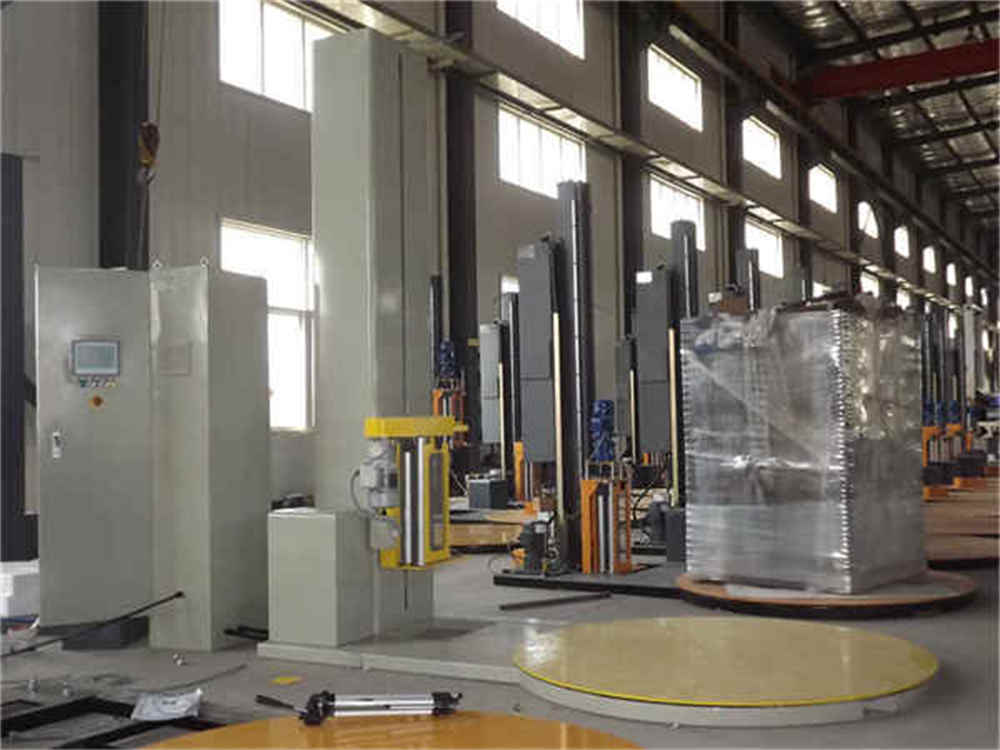

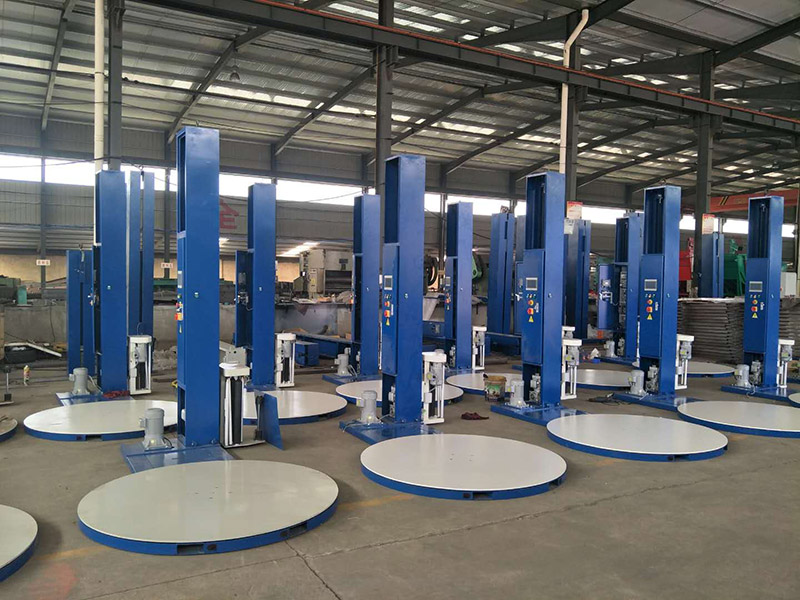

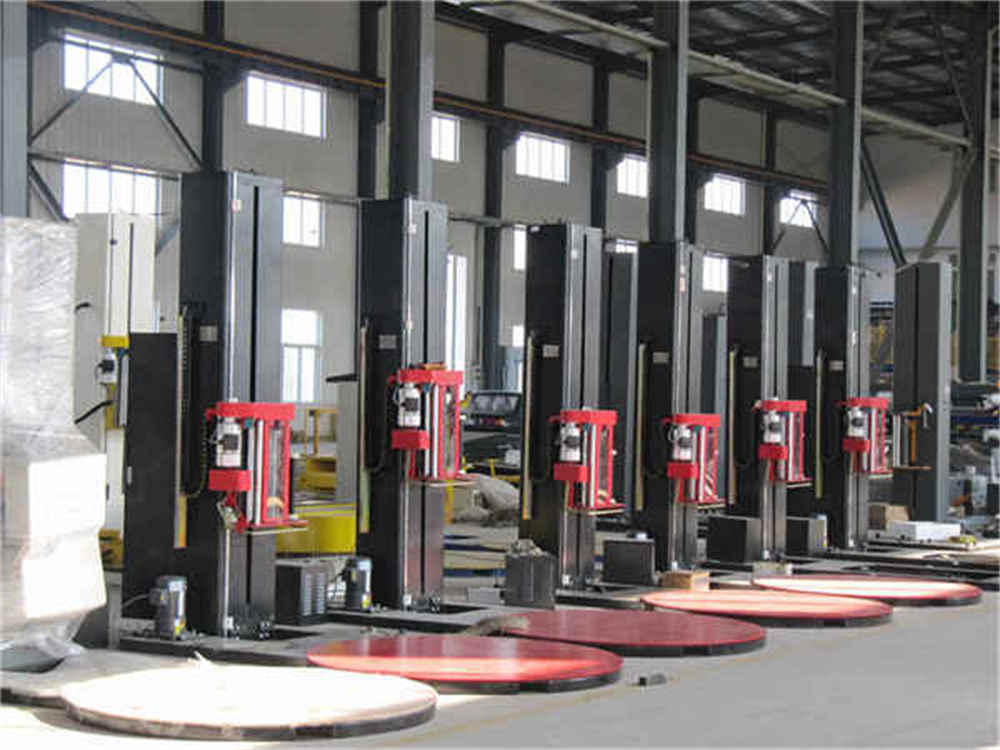

Semi-Auto Pallet Wrapping Machine

Performance Advantage of Semi-Auto Pallet Wrapping Machine


1.Man machine interface control, operate easily

2.220V AC motor film frame, equipping frequency conversion to adjust tension,changed that adjusting speed by 24V DC motor with power box in same industry of China, and changed he instability of tension.


Price
$1.00
  Contact Now E-Mail Telephone WhatsApp
Product Details

Semi-Auto Pallet Wrapping Machine Hot Sales!


220V AC motor film frame, equipping frequency conversion to adjust tension,changed that adjusting speed by 24V DC motor with power box in same industry of China, and changed he instability of tension.

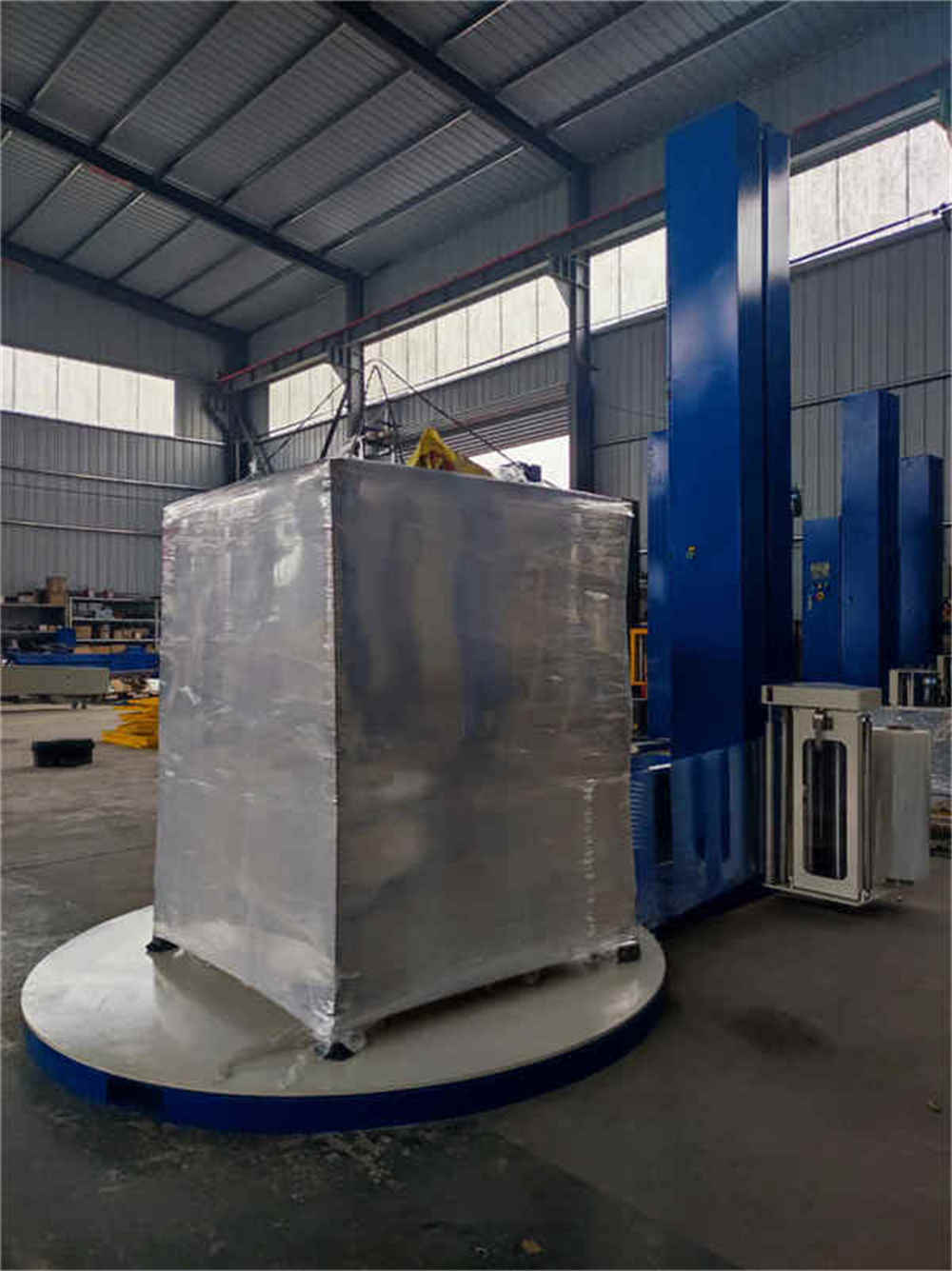

Semi-Auto Pallet Wrapping Machine  Semi-Auto Pallet Wrapping Machine

Technical Specification of Semi-Auto Pallet Wrapping Machine

Item

Specification

Turntable size

D=1650mm, H=78mm

Wrapping size

500-1200mm (L) *500-1200mm (W)

Packaging height

Max.2400mm (1800/2800mm available)

Turntable loading

Max.2000kgs

Machine weight

800kgs

Machine power

1.5kw

Turntable speed

0-14RPM (adjustable, soft start & stop)

Power supply voltage

Single-phase 220V

Packing material

LLDPE stretch film

Semi-Auto Pallet Wrapping Machine

MAIM PERFORMANCE OF Semi-Auto Pallet Wrapping Machine

Control system

1. Program control unit integrated machine;

2. Wrapping layers and times can be set;

3. Photoelectric switch, automatically sensing the height of goods;

4. Reinforced wrapping function, which can protect certain parts specially;

5. Overtop time setting function.


Turntable driving:

1. Turntable frequency convension speed: 0-12rpm;

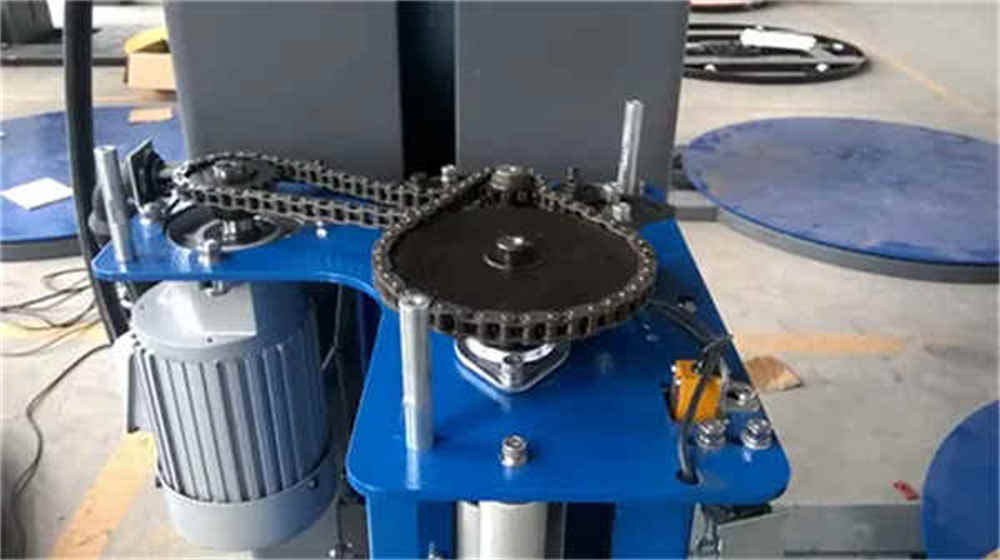

2. Turntable is driven by chain, with accurate positioning;

3. Turntable can automatic reset ;

4. Forklift slot at the bottom of turntable.

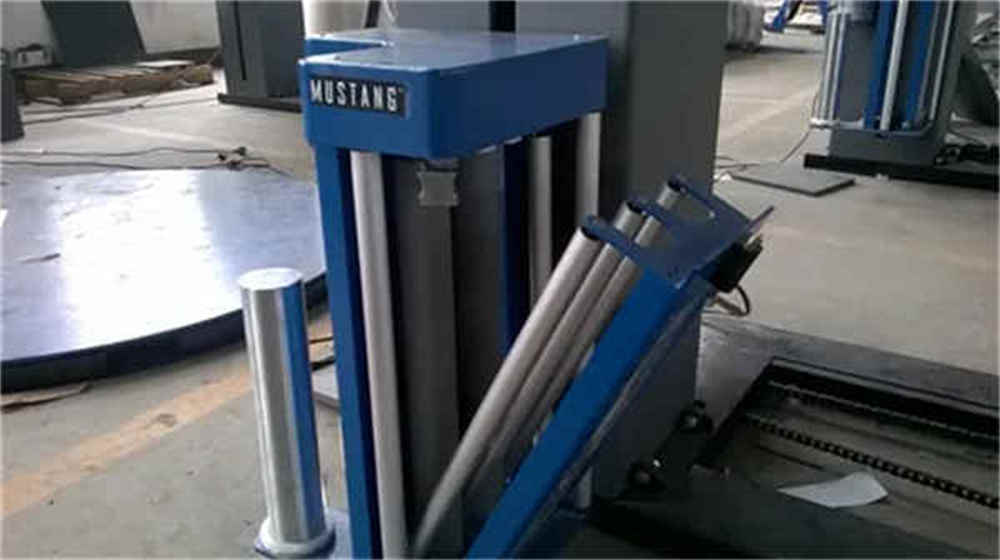

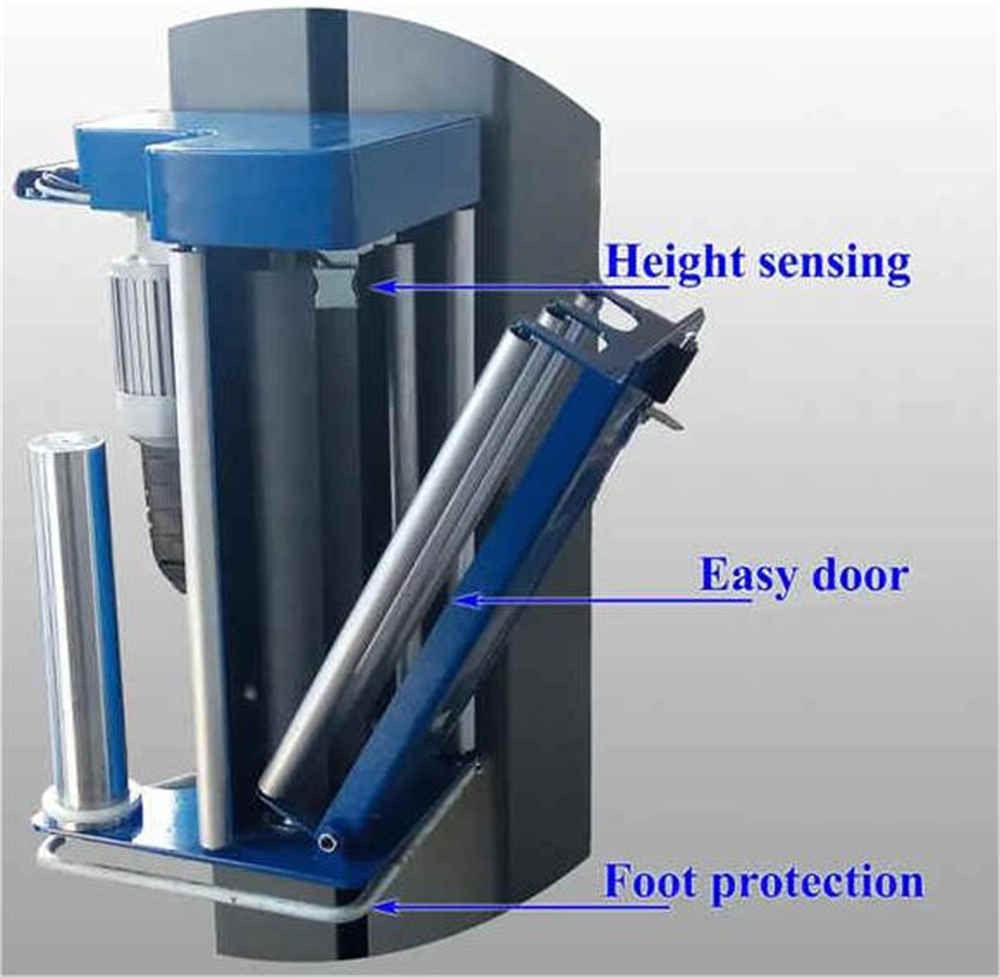

Film carriage system:

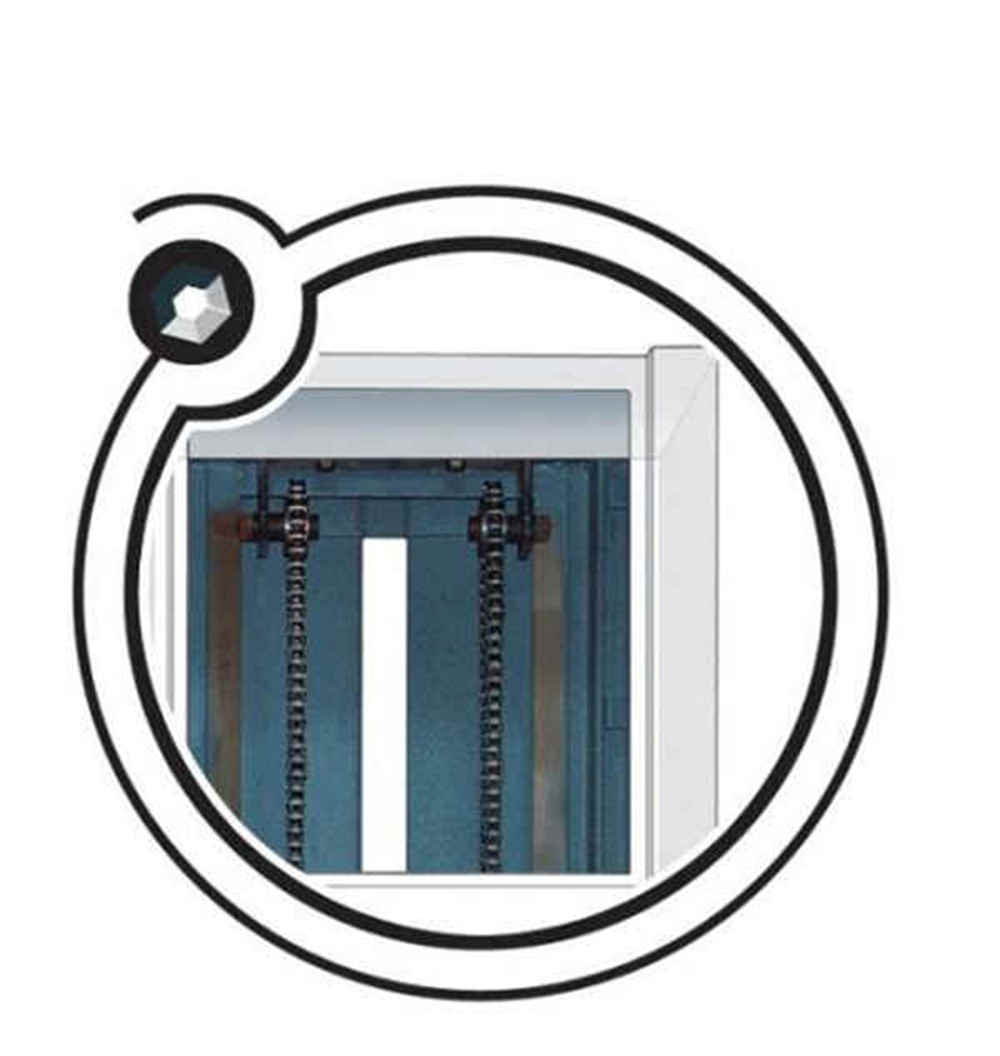

1. Drive by pre-stretch carriage, stretch ratio up to 250%, double chain design, stable and reliable.

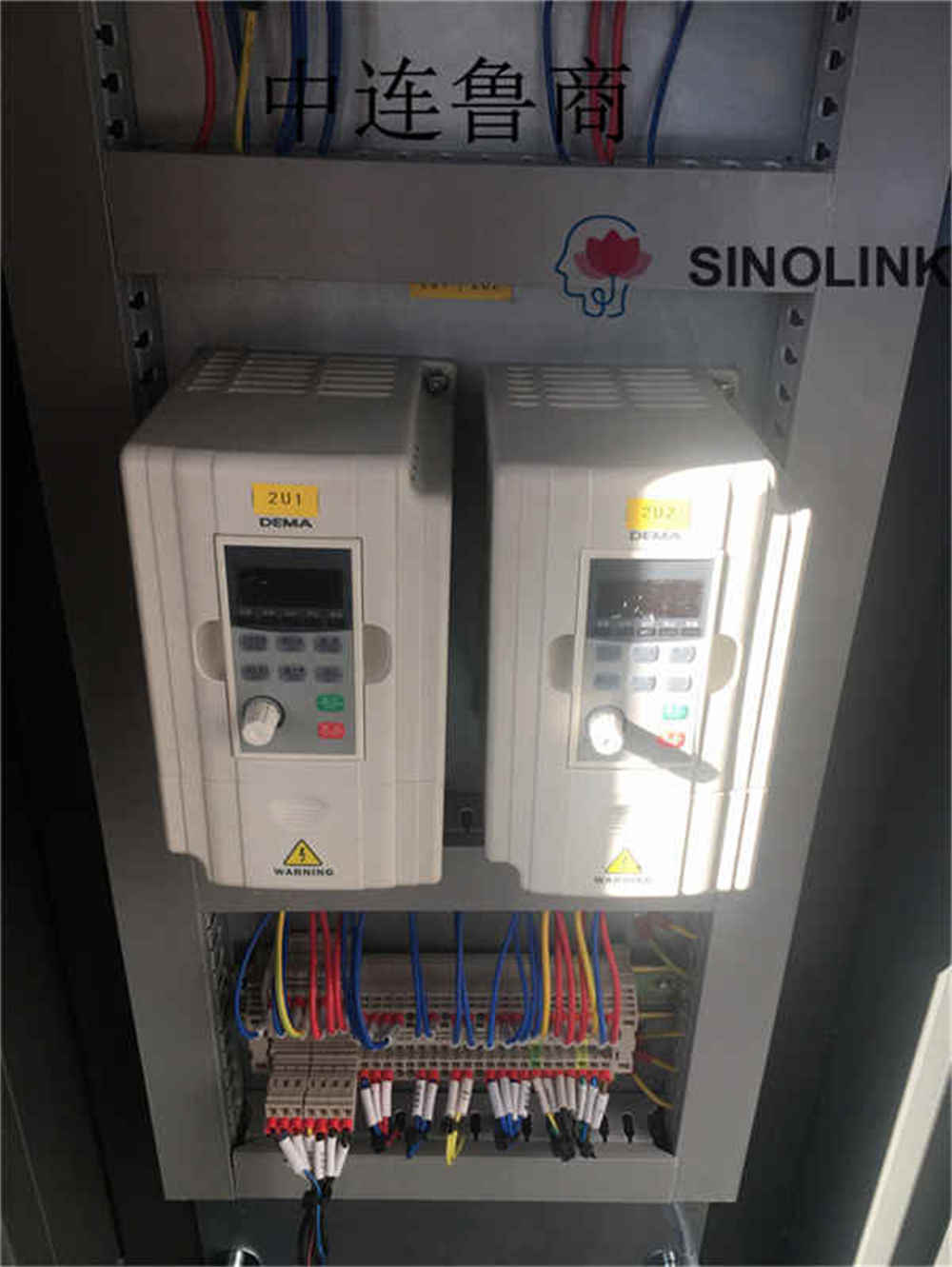

2. The AC motor stretch the film, and the frequency converter adjusts the tension;

3. Moving up or moving down of film carriage and the speed of film speeding can be adjusted separately;

4. Top and bottom wrapping layers is controlled separately.

5. Servo mechanism of film system, which can be pulled once.

Semi-Auto Pallet Wrapping Machine

Drink Technology India & Russia International Packaging Exhibition:

Semi-Auto Pallet Wrapping Machine

Drink Technology India

International Packaging Exhibition in Russia

Participated in the Triennial International Packaging Machinery, Packaging and Confectionery Machinery Exhibition (Interpack 2017) in Dusseldorf, Germany.

Triennial International Packaging Machinery, Packaging and Confectionery Machinery Exhibition (Interpack 2017) in Dusseldorf, Germany,

Participated in the Triennial International Packaging Machinery, Packaging and Confectionery Machinery Exhibition (Interpack 2017) in Dusseldorf, Germany,


Welcome your inquiry at any time. Looking forward to help you to get the most suitable packaing machines from us.

Ady

WhatsApp:+86 15634865861

Semi-Auto Pallet Wrapping Machine
